DIY - CNC Laser V2

Mark Qvale - November, 2024

Introduction

So, it's been ~4 years since the original build of my DIY - Benchtop CNC. In that time there have been many, many projects, mechanical trouble shooting and modifications completed. After all this I found the most used tool on the Benchtop CNC has been the Laser module. This write-up then is to show a scratch build to the current state of my machine which still accommodates some of my original cutting, engraving, and plotting tools.

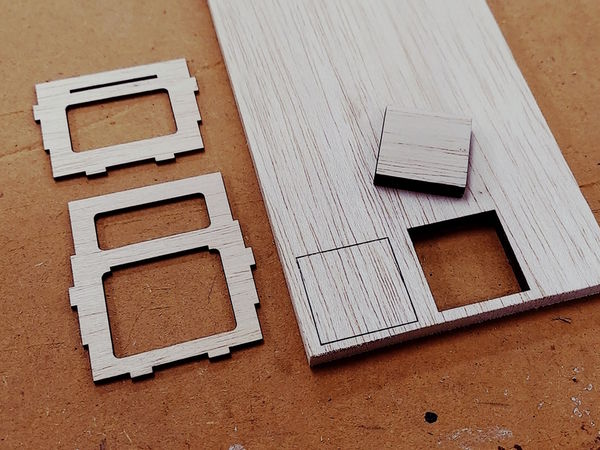

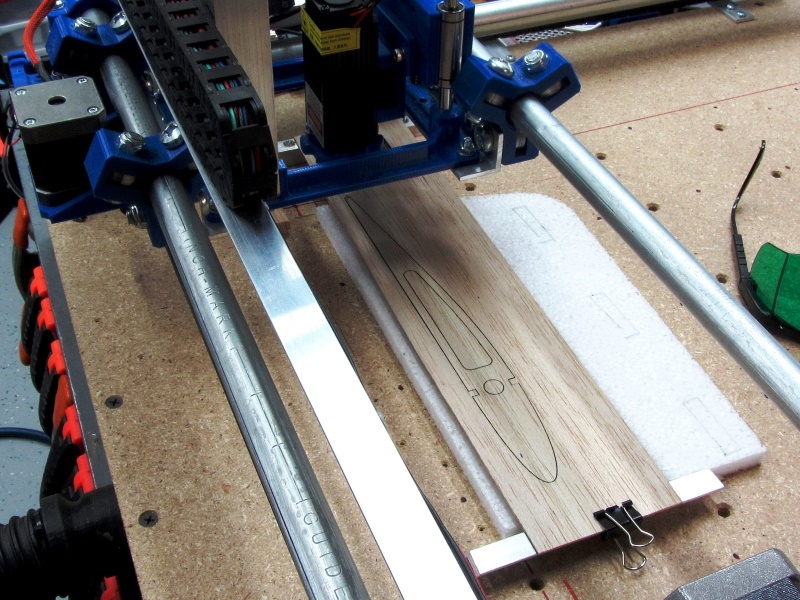

Laser cut fuselage parts in 1/16" balsa

With regards to the Laser module, it is a 10 watt (optical) unit I found at Aliexpress and it now lists for ~$120US. It will cut up to 1/4" (6mm) Balsa or 1/8" (3mm) plywood in a single pass which makes scratch building planes a lot easier and faster!

NOTE: This machine is not and was never intended to be a metal cutting CNC. It is intended to be a lightweight wood cutter/ engraver/ plotter/ foam cutter/ template cutter, etc.

All designs found in this article are licensed under - Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International

As-Built Machine Specifications

Some Numbers:

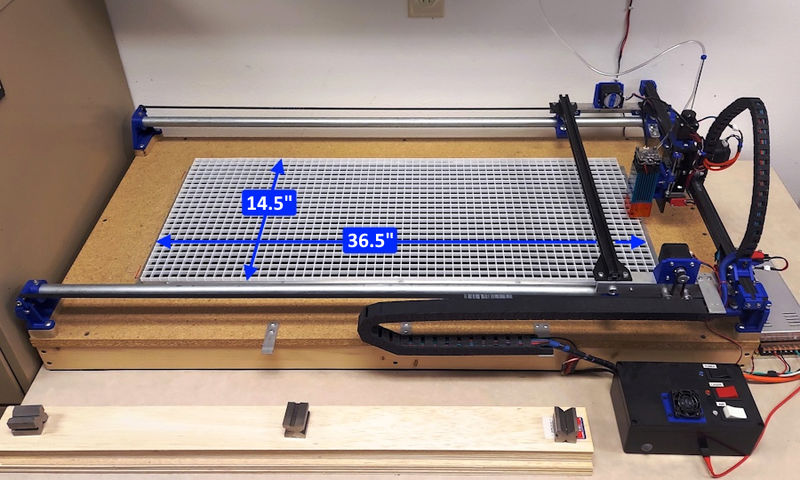

Base Size - 24" x 48" x 13.5" (61cm x 122cm x 35cm)

Work Area - 14.5" x 36.5" (36.5cm x 92.7cm)

Z-axis Travel - 1.7" (4.3cm)

Control Board - (unbranded) 32bit GRBL 4-Axis Control Board

Number of Stepper motors - 4, 1 for X, 2 for Y, 1 for Z

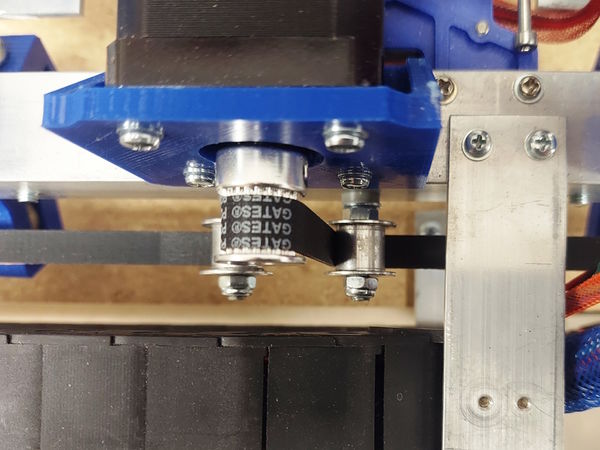

Drive type - X and Y axis are GT2 belt drive, Z axis is by 8mm lead screw

 ???Number of 3D Prints - 24 (not including tool pieces)

 ???Total print time <30 hours

Parts

Added to this are the rest of the printer pieces found online:

4 - GT2 Pulleys 9mm width with 5mm I.D. ball bearings ($12)

2 - GT2 Pulleys 6mm width with 5mm I.D. ball bearings ($5)

2 - GT2 20 tooth drive gears 9mm width ($5)

1 - GT2 20 tooth drive gear 6mm width ($3)

1 - 4m GATES GT2 belt 9mm width ($12)

1 - 2m GATES GT2 belt 6mm width ($4)

2 - GT2 belt spring clips (incl)

 ???1 - 8mm x 5mm lead screw coupler ($8)

 ???1 - 8mm x 2mm pitch x 200mm long lead screw ($11)

 ???1 - 8mm x 2mm pitch lead screw nut (incl)

Total purchase cost ~$

 ???Total 3D printer parts used - $122

Printed Parts

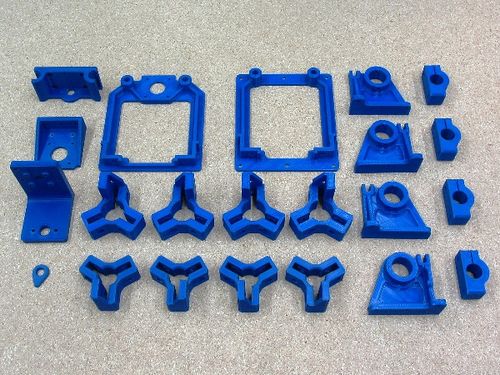

This section has information on the projects 3D print parts. In the list below, the column "Print File" has an STL download link (left click) to get the print file of each part.

Image	Part Number	QTY	Part Description	Print File	Part Notes
	80001	1	Corner Mount, Type A	80001.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80002	2	Corner Mount, Type B	80002.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80003	1	Corner Mount, Type C	80003.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80004	1	X-Axis Limit Switch Mount	80004.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80005	1	Tool Carriage Base Plate	80005.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80006	1	Tool Carriage Top Plate	80006.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80007	1	Z-Axis Slide Mount	80007.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80008	1	Tool Carriage Drive Mount	80008.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80009	2	X-Axis Carriage Slide, A	80009.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80010	2	X-Axis Carriage Slide, B	80010.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80011	2	Y-Axis Gantry Slide, A	80011.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80012	2	Y-Axis Gantry Slide, B	80012.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80013	4	X-Axis Tube Clamp	80013.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80014	2	Gantry Drive Mount	80014.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill

Specific Part Notes

80016, Needle Cutter Needle Holder is printed at 0.1mm resolution and 80% infill.

Printing Details and Times

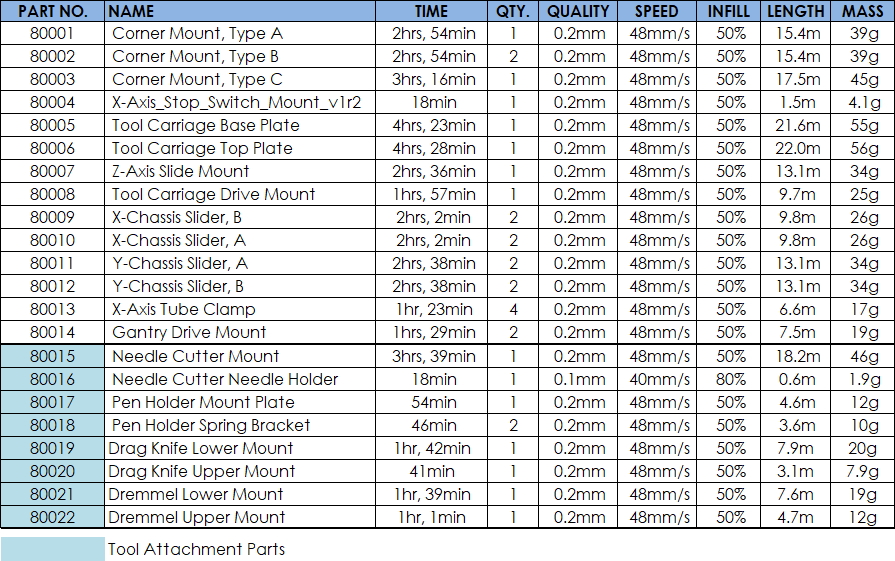

The chart below outlines print details with estimated print time and filament usage for the parts in this project.
Print filament used in first build:

Hatchbox PLA, 1.75mm - ($22)

Extruder Temp - 210C

Bed Temp - 60C

The following is a summary of the machines parts only, no tool attachment parts:

Total print time - 52hrs, 50min

Total number of parts - 23

Total filament used - ~0.76kg

Brackets & Turned Parts

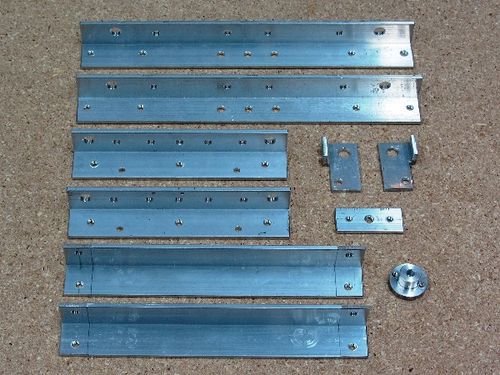

This section has information on aluminum parts made from standard hardware store materials. The column "Drawing File" has a PDF download link (right click and select save-as) to get the drawing details of each part. There are a total of 6 drawings describing these 12 parts which are listed by part number in numerical order.

Image	Part Number	QTY	Part Description	Drawing File	As-built Mtl	Part Notes
	40001	2	Spacer, 5mm x 10mm x 22mm	CNC004	Aluminum tube - 3/8" x 0.049" wall	Aluminum spacer for the X-Axis cable track guide
	70001	1	Y-Axis Cable Track Bracket, Base	CNC002	Aluminum flatbar - 1" x 1/8"	Bracket to attach Y-Axis cable track to the wood base
	70002	1	Y-Axis Cable Track Bracket, Gantry	CNC003	Aluminum flatbar - 1" x 1/8"	Bracket to attach Y-Axis cable track to the Gantry
	70003	2	Cable Track Base Support Bracket	CNC002	Aluminum flatbar - 3/4" x 1/8"	Bracket to support Y-Axis cable track
	70004	2	X-Axis Drive Belt Mount Bracket	CNC002	Aluminum flatbar - 3/4" x 1/8"	Bracket to mount belt post
	70005	1	X-Axis Cable Track Support Bracket	CNC003	Aluminum angle - 3/4" x 1/2" x 1/16"	Bracket to support X-Axis cable track
	70006	1	Tool Carriage Cable Track Mount Bracket	CNC002	Aluminum angle - 1" x 1/8"	Bracket to mount X-Axis cable track to the tool carriage
	70007	2	Tool Carriage Corner Bracket	70007	Aluminum angle - 1" x 1/8"	Corner post support bracket
	70008	2	X-Axis Carriage Bracket	70008	Aluminum angle - 1" x 1/8"	X-Axis slide assembly bracket
	70009	2	Y-Axis Gantry Bracket	70009	Aluminum angle - 1" x 1/8"	Y-Axis gantry slide assembly bracket
	70010	1	Needle Cutter Tip Mount Bracket	CNC002	Aluminum flatbar - 3/4" x 1/8"	Bracket to mount the MIG weld tip
	90001	1	Needle Cutter Flywheel	CNC004	Aluminum roundbar - 1" Dia.	Flywheel/crankshaft to drive the needle cutter

Summary of purchased aluminum material used-

Flat-bar - 3/4" x 1/8" x 12"L

Flat-bar - 1" x 1/8" x 12"L

Angle - 1" x 1" x 1/8" x 60"L

Angle - 3/4" x 1/2" x 1/16" x 36"L

Tube - 3/8" x 0.049 wall x 12"L

Round-bar - 1" O.D. x 12"L

Specific Part Notes

Part and material substitutions are definitely OK. Here are two ideas-

40001 - Spacer, this part can be made from the material shown above or any close alternate like hard plastic tube.

90001 - Flywheel, This part can be made in many different ways including 3D printing. Here is a link to a 3D version - "Needle Foam Cutter for MPCNC"

Making Accurate Metal Parts

It is important on a project like this to get the dimensional accuracy of all parts as close as possible to avoid assembly and operational differences (problems). Below are details of how I do this on three of the critical parts without the benefit of using a vertical milling machine.

Tools & Miscellaneous

Drill press++

Sharp Center Punch

Metric Drill Bits or # equivalents

Avery #18665 Full Sheet Shipping Labels

Computer and Printer

PDF of 1:1 Layout Print

Patience :)

++A powered hand drill can be substituted for the drill press if one is very skilled and careful.

Work Steps

Step one - Download and print on regular paper the Layout Print linked below

Layout Print PDF Link

This needs to be printed with no scaling (at 100%). Now, using a scale or ruler, confirm that the lengths of each part shown on the print are accurate.

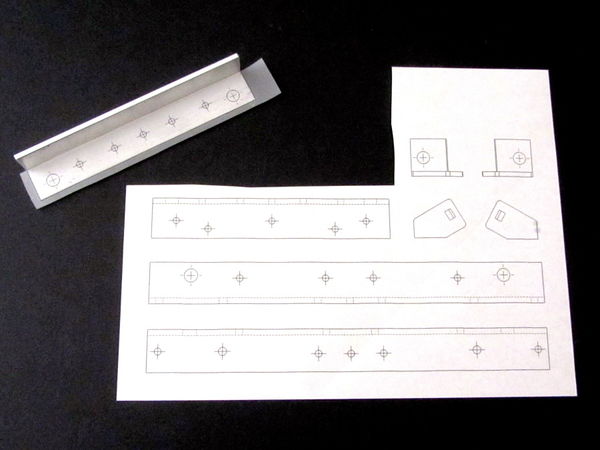

Step two - Print the layout print on a sheet of the Avery shipping labels

Step three - Carefully cut out the labels and apply them to the inside surfaces of the angle brackets as shown below:

Cut and applied label

Step four - Using a sharp center punch, VERY CAREFULLY punch each center mark

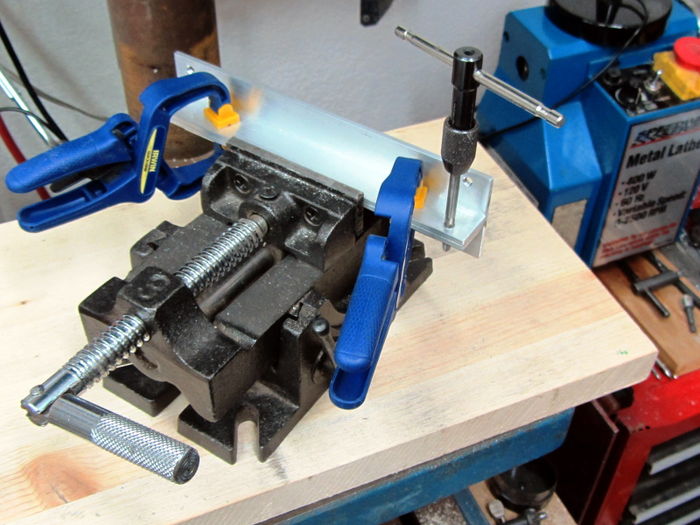

Step five - With two ratchet clamps, clamp parts in pairs, put into a vise and drill each hole through both parts

If any of the holes are tapped, do this while the parts are still clamped together in the vise

Finishing the corner brackets

Step six - Lightly chamfer all holes and break all sharp edges

You should now have a set of very accurate parts ready to assemble!

Fasteners

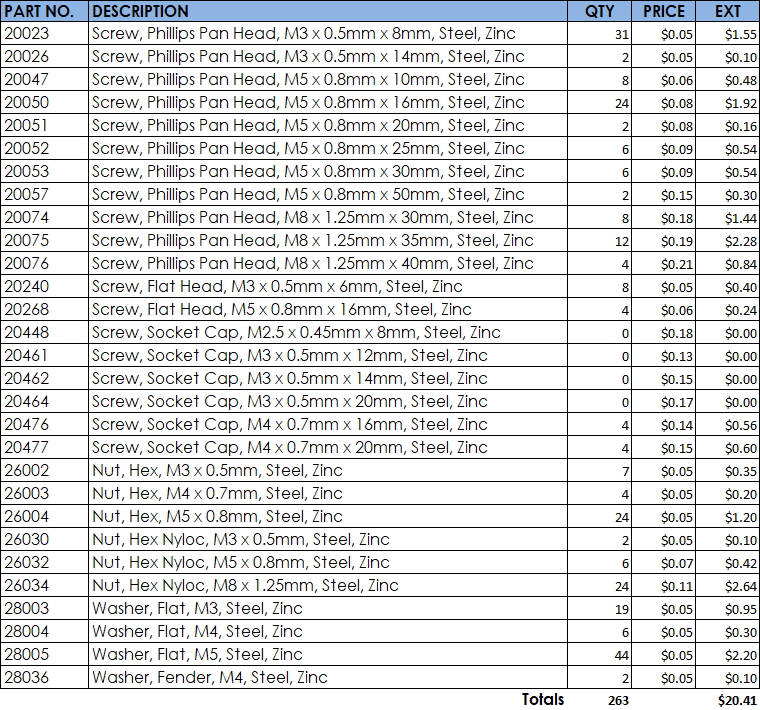

The chart below lists all the fasteners used on my first build. Part numbers and descriptions are from my own part database and prices shown are from BoltDepot.com as of April 2, 2020.

Design and Sub-Assemby

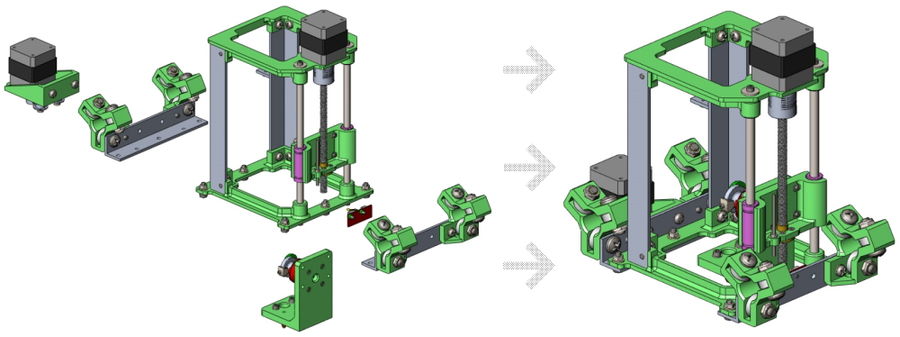

This section takes a look at some of the major sub assemblies and how they are intended to be built. All designed parts were done in SolidWorks and are licensed as "Share Alike, Non-Commercial".

One of the great ideas from the folks at V1 Engineering was to use metal conduit for the Y-axis and X-axis slides. The total cost for these pieces is around $18 and they were purchased from a local big box hardware store. The tube is called EMT Conduit or "Electric Metallic Tube (EMT) Conduit". If you go this route, make sure to check the pieces you buy for straightness and a consistent finish. After cutting to length I did sand the tubes with 220 and 400 grit sandpaper to get a nice smooth motion from the two gantries.

As an example, here is a link to one of the tubes (#60005 EMT Conduit Tubing, 1/2"):

Link:    EMT Conduit

The below link will get you a complete parts list. All part numbers shown are my own and have no relation to any existing manufacturers part. They are simply an easy way to reference each component.

Link:    CNC_Parts_v1.1.pdf

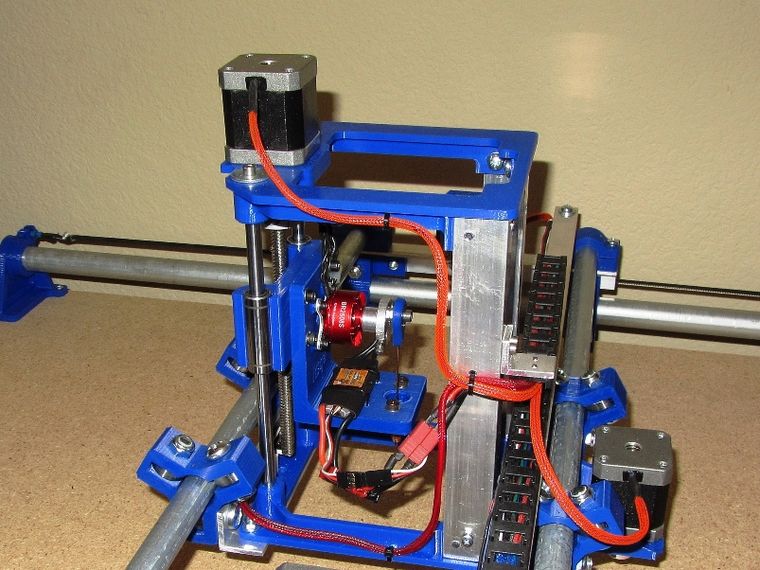

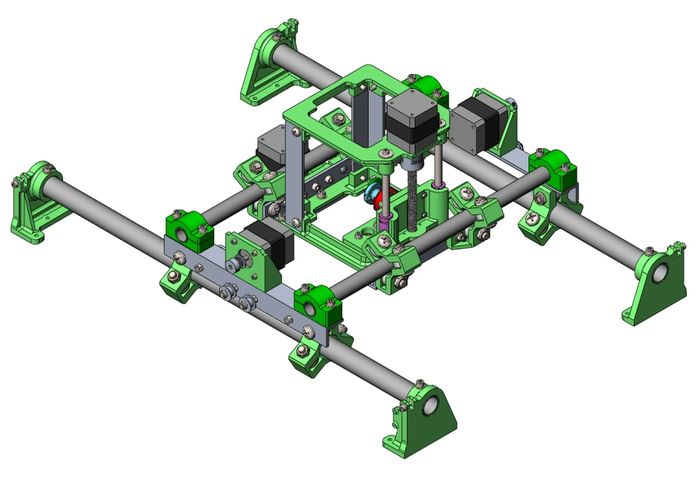

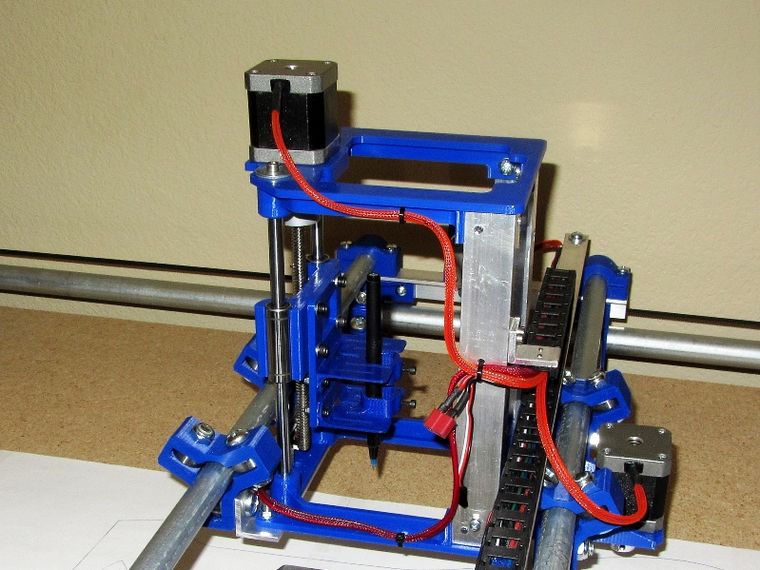

Top assembly with Needle Cutter tool

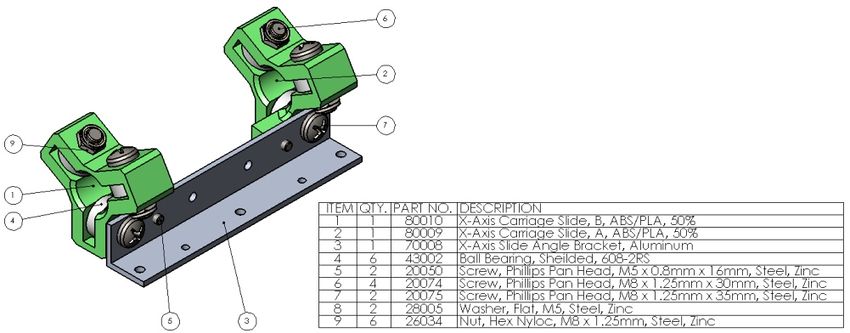

X-Axis Tool Carriage Slider

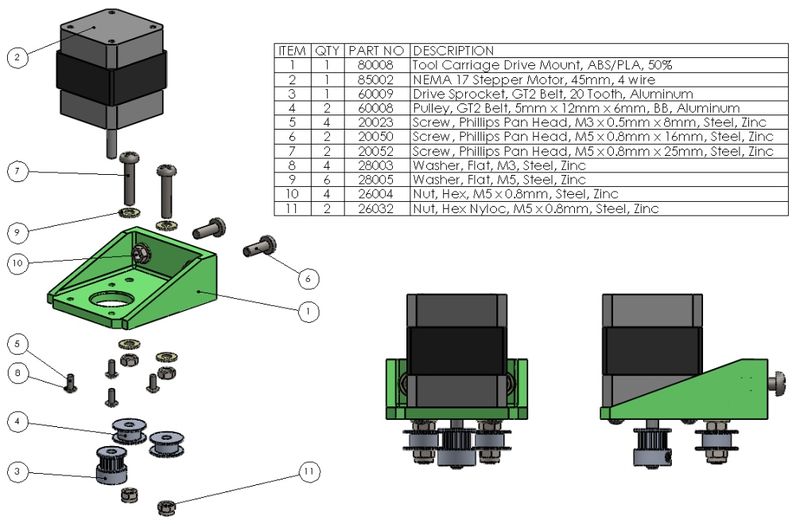

X-Axis Carriage Drive

X-Axis Tool Carriage

Y-Axis Gantry Slider

Base and Vacuum Table

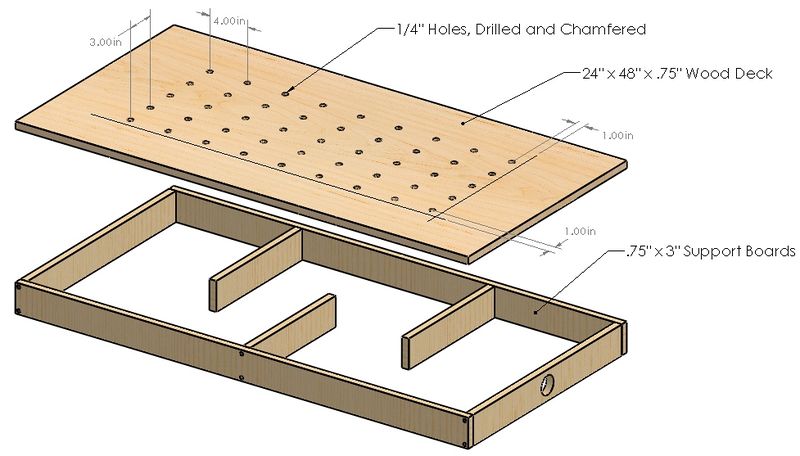

This is my "As-Built" base which includes structure for adding a shop vacuum to help secure the work piece. For the top I used a piece of HD Particle board and for the structure I used typical 1 x 3 White-wood found at the local big box store (Lowes). All structure pieces were ripped on a table saw to ~2.4" and the hole for my shop-vac was cut to 1-3/4" with a hole saw.

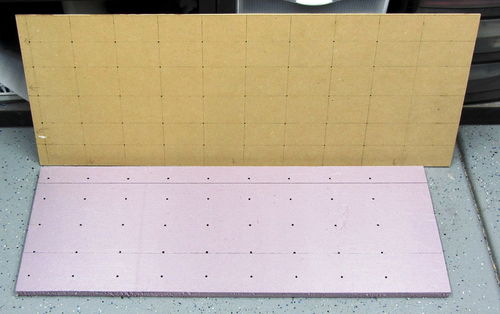

To drill the deck holes, I laid out the hole pattern on a piece of 1/4" hard-board, secured it in place on the deck piece against the X and Y axis (marked) and drilled through both. This gave me a template to use for making (purple) foam work support pieces which are needed when using the Needle Cutter. I simply place the template on top of a new piece of foam, lining up the two X and Y edges, and quickly hot-wire through each hole.

Template and 3/4" purple foam piece

Tool Attachments

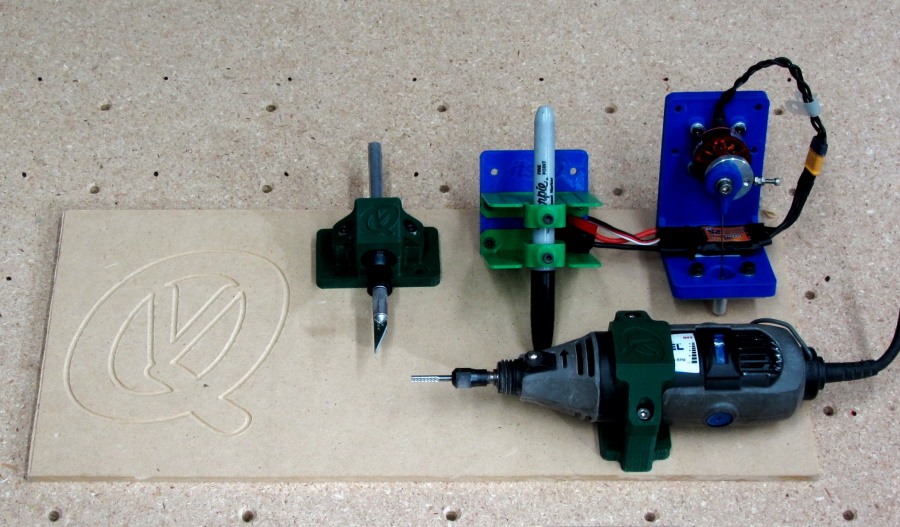

Tool attachments are what make this project! Here I show four different tools which all work very well and are all attached via four M4 socket head screws.

Needle Cutter Tool

The Needle Cutter tool works really well for cutting foam panels. I got the idea from the great guys at Flightest RC and this in turn pointed me to a Thingiverse version of this tool. Here is the forum posts which have more info and many other ideas on how to do this - cutting-foam-sheets-with-a-needle.

While the design is simple enough, it is dependent on using a motor with exactly the same dimensions or the alignment over the needle guide hole will need to be adjusted. For a motor I chose one I already had, a Racerstar BR2508-1275kv. The motor configuration, with a threaded shaft, short stator and low 1275Kv was perfect for an application like this. This motor is powerful enough to handle just about any foam cutting you might need and it is still very small and light. The important dimension from the mount face to the end face is 23mm and the motor diameter is 32mm. To control the motor I am using a very inexpensive brushless speed control that is rated for 20A but a 10A would do just fine.

As far as the flywheel part, the forum link above will give you many options to use 3D printed pieces as opposed to the turned aluminum piece I made for mine.

The "MIG Tip" that guides the wire needle is a MIG welding tip you can find at big box or welding supply stores. I have used sizes from 0.035" to 0.047" with both weld wire needles and music wire needles. Both work well!

Pen Plotter Tool

The Pen Plotter tool is really just a pair of simple, light, spring brackets with screws to secure the pen. The pen tip will be close to the 0,0 point of the needle cutter but it is not exactly the same because its exact location depends on the pen diameter. Sharpies and roller ball pens work best.

To set it up, first zero the Z axis then raise the tool 0.5mm to 1mm. Next place the pen in the holder with the pen tip resting on the deck. Carefully tighten the clamp screws without moving the springs up or down. If your machine is stable and has a very flat deck, this should be enough "springiness" to draw a very clean image. If it skips in spots, reset the pen with a little more Z height.

Drag-Knife Tool

I wanted a way to cut decals and paint templates so I took a look at professional Drag Knives to get an idea and this is what I came up with. It is built with the same bearings I used in the CNC sliders, a spring for pre-load, an Xacto Knife and a couple of printed parts.

Dremmel Router Tool

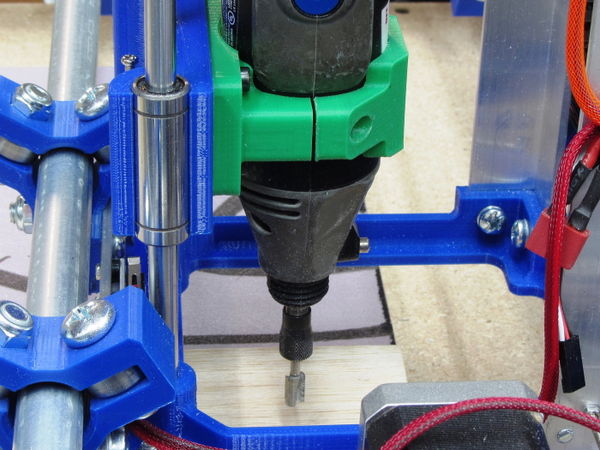

Always wanted a way to do some engraving and I already had the Dremmel. This is just a simple clamp and because of the type of coupler I have on the lead screw, the cutter will move a small amount vertically. Even with the movement, it still does a very nice job on soft wood.
NOTE: There are many models of the Dremmel Tools! This clamp fits the "Dremmel MultiPro model 395"

Laser Engraving/Cutting Tool

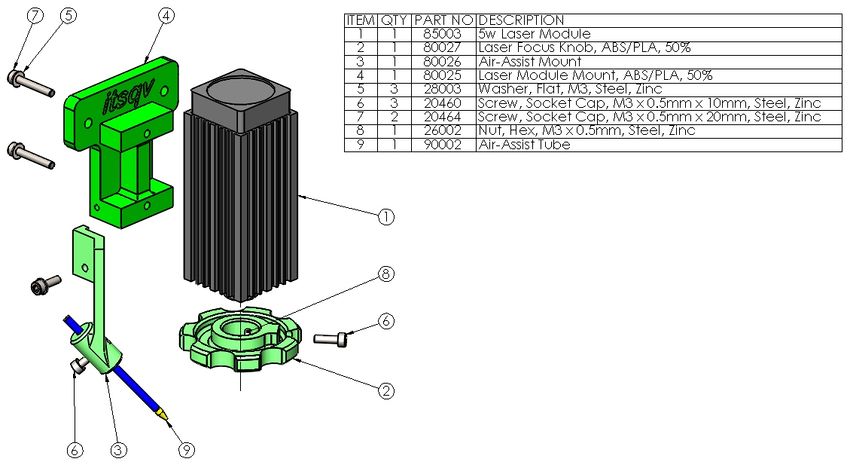

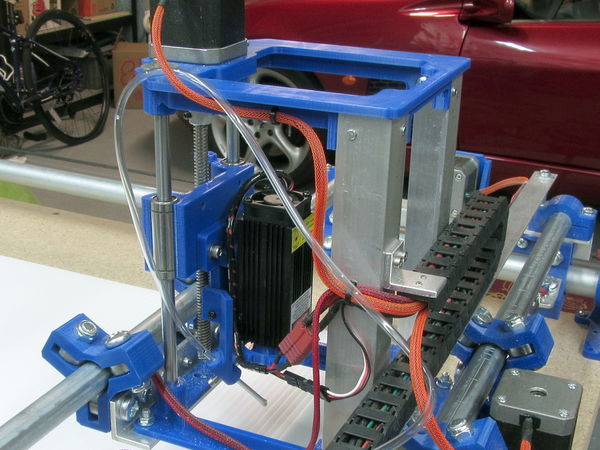

Always wanted a way to do some Laser engraving and cutting! I found an inexpensive, 5 watt Laser Module (On Sale - $89) and thought I would give it a try. I did a couple iterations of the mount and added an air-assist nozzle which made a huge difference in burn and cut quality
NOTE: These parts are designed specifically for the Banggood 5w Laser Module and likely will not fit other modules

Tool Print Parts

The following are print parts for the Needle Cutter Tool and the Plotter/Pen Holder Tool:

Image	Part Number	QTY	Part Description	Print File	Part Notes
	80015	1	Needle Cutter Mount	80015.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80016	1	Needle Cutter, Needle Holder	80016.STL	Print in ABS or PLA at 0.1mm resolution and 80% infill
	80017	1	Pen Holder Mount	80017.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80018	2	Pen Holder Spring Bracket	80018.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80019	1	Drag Knife Lower Mount	80019.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80020	1	Drag Knife Upper Mount	80020.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill

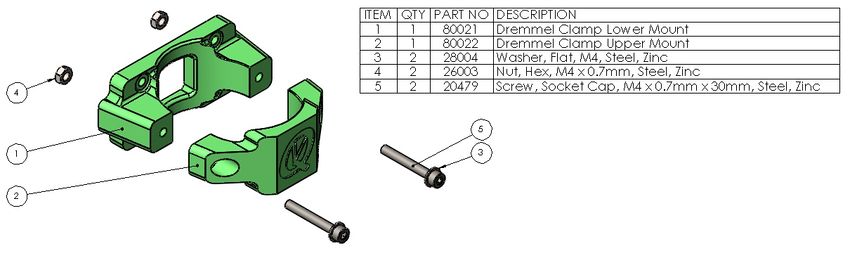

	80021	1	Dremmel Clamp Lower Mount	80021.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80022	1	Dremmel Clamp Upper Mount	80022.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80025	1	Laser Module Mount	80025.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80026	1	Air-Assist Nozzle Mount	80026.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill
	80027	1	Laser Focus Knob	80027.STL	Print in ABS or PLA at 0.2mm resolution and 50% infill

Controls

This is a brief description of what I use to control the CNC. There are three control boards shown here, initial as-built 3D control board and two purpose built CNC control set-ups. I wanted to keep the cost low and the control system simple. To that end, all the systems here need a computer (laptop) to work. For a control user interface I am using the free Universal Gcode Sender (UGS) software linked below-

Universal Gcode Sender

As-Built

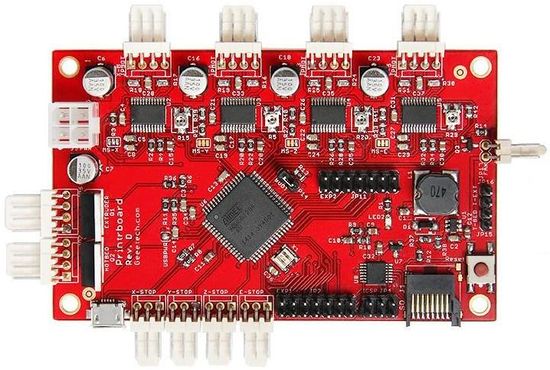

Printrboard REV D

As I stated in the introduction and the old printer section, my initial control board was out of a very old OneUp 3D printer. Of course, no control system this old will work without some tweaking.

The first issue with it was it was programmed with a build plate size limit of 100mm x 100mm which needed to be changed to 910mm x 310mm. The next issue was finding software/firmware that would allow me to make changes to the firmware. After a LOT of digging and trial and error I found an old link that amazingly still worked which offered the firmware and an old version of Arduino (0022) that would support and upload it.

After hours of fiddling, I finally got it modified and uploaded to the board. The next issue was getting the board to connect to either Pronterface or Repetier print software and this too took a lot of trial and error as both would connect but throw errors. The method that finally worked involved disconnecting stop switches and one stepper motor and powering up the board after connecting the USB. Then I connect the software and plug in the stop switches as well as the stepper motor.

The video at the end of this article shows the results which are pretty good! I will be changing to a proper CNC control board with more current software and plug-and-play functionality - Stay tuned!

Original 3018 CNC Board

3018 CNC Board

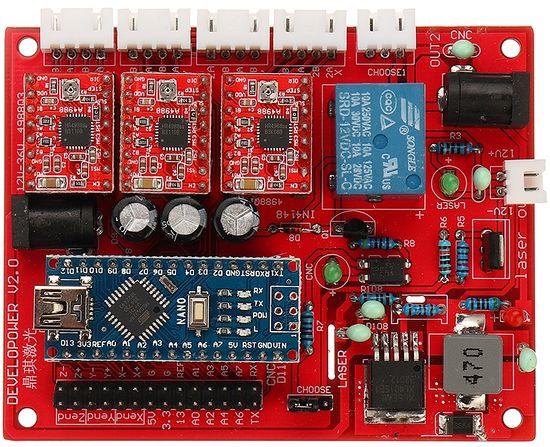

This board, which is labeled "Developower v2.0" did not work well for me. It was OK as long as I didn't attempt to activate the limit switches, something I feel is mandatory. I did download and install the most current stable firmware and I also swapped out the clone Arduino Nano with an original equipment one but neither the current firmware or the new Arduino board made any difference. I also tried changing out the Makerbot limit switches I was using with industrial Micro-Switch units and again, no change. At one point, when trying to activate the limit switches, it dumped all the machine eeprom settings and stopped working completely.

From here I did a little more research and came up with another inexpensive option (see below). In any case I would not recommend going with the 3018 CNC board.

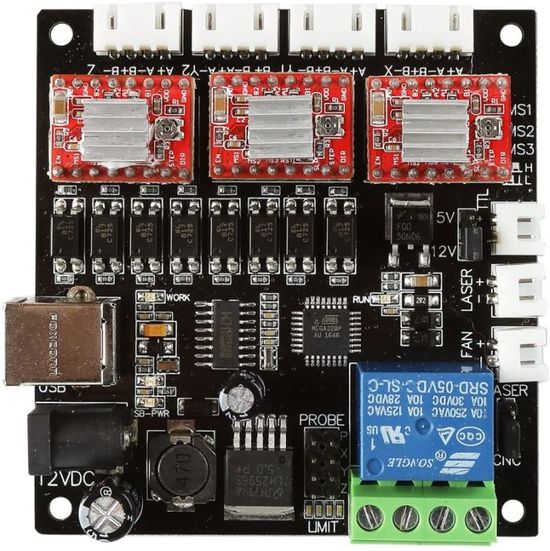

SainSmart 3-Axis Control Board

SainSmart Board

I found this board on Amazon but you can also get it direct from Sainsmart here: Sainsmart. I am really impressed! It worked right out of the box including limit switches and active homing. It was very easy to set-up and I now have a case printed up to help protect it. It has an on-board power relay to manage a spindle motor and a TTL capable Laser output/input.

With a price of around $25, it is a great bargain.

Gallery

A few project pictures:

Almost there!

Needle Cutter Tool

Pen Plotter/Holder Tool

Standard Dremmel Clamp

Dremmel Clamp

5w Laser Mount

First Jobs Images and Video

Here are a few images of the first tasks completed on my CNC. I did the pen plot first to do a final check of the dimensional accuracy in X and Y of the parts to be cut. Hard to see because I used a fine point pen for the measurement accuracy. Once the X and Y dimensions are dialed in, it is on to cutting!

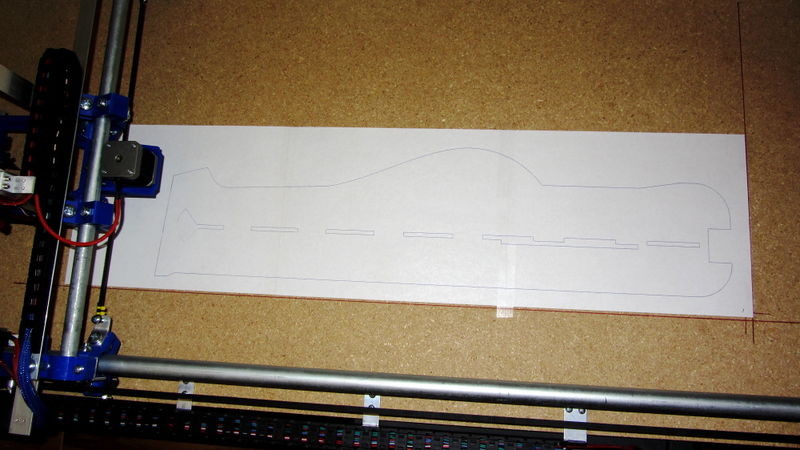

Pen plot

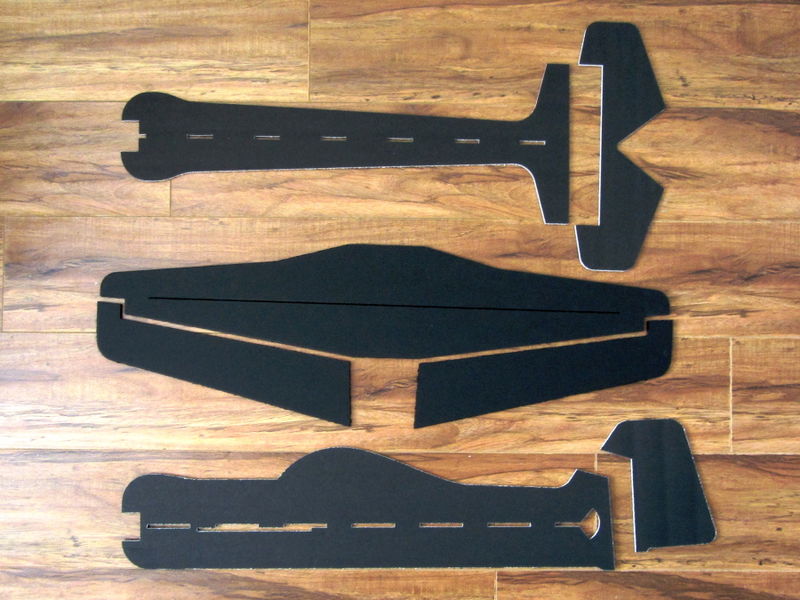

Next is the result of the first part set I cut out of 5mm Foam-Board (total cost - $4!). The fuselage parts are low density and the wing is high density. Cuts needed a very small amount of sanding to clean off paper remnants and to smooth out some very minor bumps.

First part set

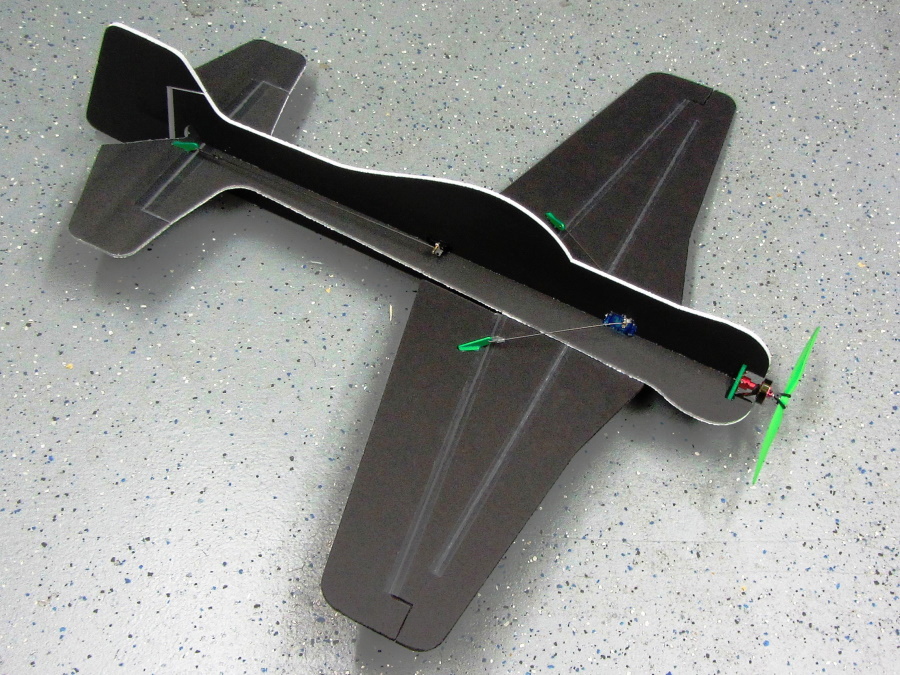

Here are the first parts all glued together and ready to go fly. Wingspan is 32" and total material cost is ~$4!!

First completed plane and a fantastic flyer!

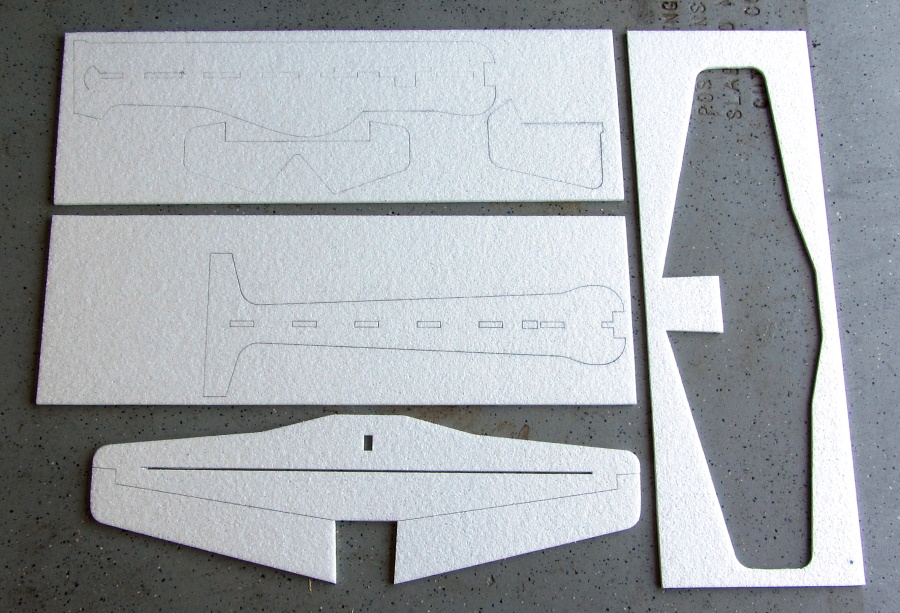

And now the Juka cut out in 1.9Lb EPP foam!

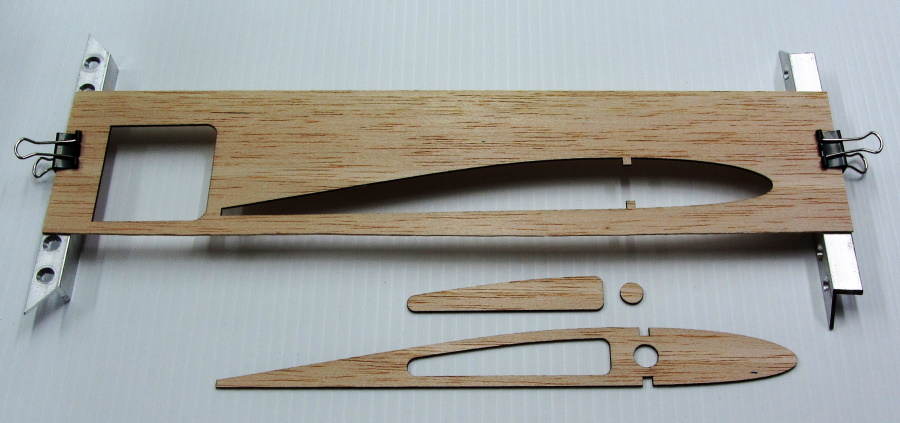

First laser cut part, a wing rib as a test piece which came out beautiful! Cut out of 1/16" balsa at 500mm/min and 4 passes.

First Cut Video!

First Cut! March 14, 2020

Updates!!

The Old Board

The Sainsmart board worked well until I started getting more serious with the laser. When I started cutting materials using multiple passes, I began to see slippage (lost steps) on the Y axis. First thing I did was replace the very old, very used steppers with new Stepperonline, 0.9deg motors. Well it ran smoother to more slippage. Next I tried changing out the A4898 drivers with TMC2208 drivers. This didn't work well as these TMC2208 drivers are not compatible with this particular Sainsmart board. At this point I came to the conclusion this board could use an upgrade.

New Board

This new board is made or distributed by a company called "Annoytools". It is a 4 axis board with two drives for the two Y axis motors (nothing shared). It is a 32bit card with a USB-C interface and needs 24v to run. Since I already bought the TMC2208 drivers I put these in and reset the vref.
It is super quiet now and very smooth running but there is still an issue with the Y-axis accuracy.

New Board!

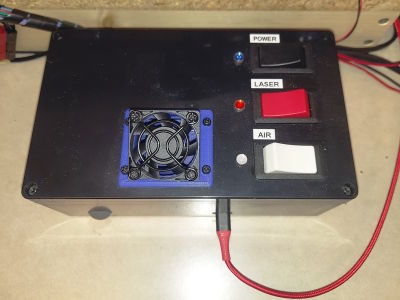

New Case!

Y-axis Accuracy SOLVED!

Turns out some components are better than others! While I was (again) checking all the mechanicals for problems that might contribute to the Y-axis issue, I discovered the Y-axis belts would slip a very small amount on the motor drive pulley. In doing a little online research I found lots of info on this issue and the overwhelming solution was to use Gates brand belts and pulleys. I also found a few references to belt width. With this new info, I found a US supplier who sells the Gates belts and pulleys in a 9mm width so I changed the two Y-axis belts and pulleys to this wider belt. I also changed the X-axis belt to Gates as well, keeping this one at 6mm width. BINGO! I can happily report the the machine is now incredibly accurate in both the X and Y axis.

Quality matters!

Air Assist

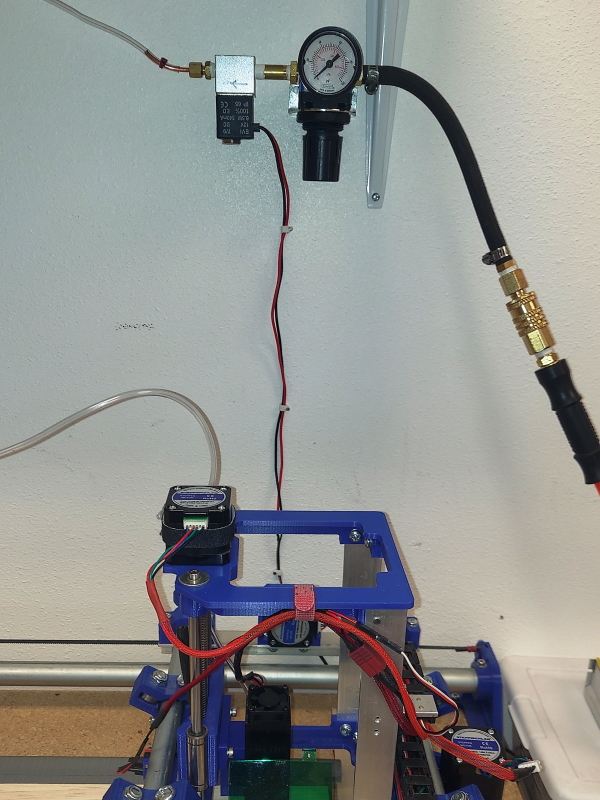

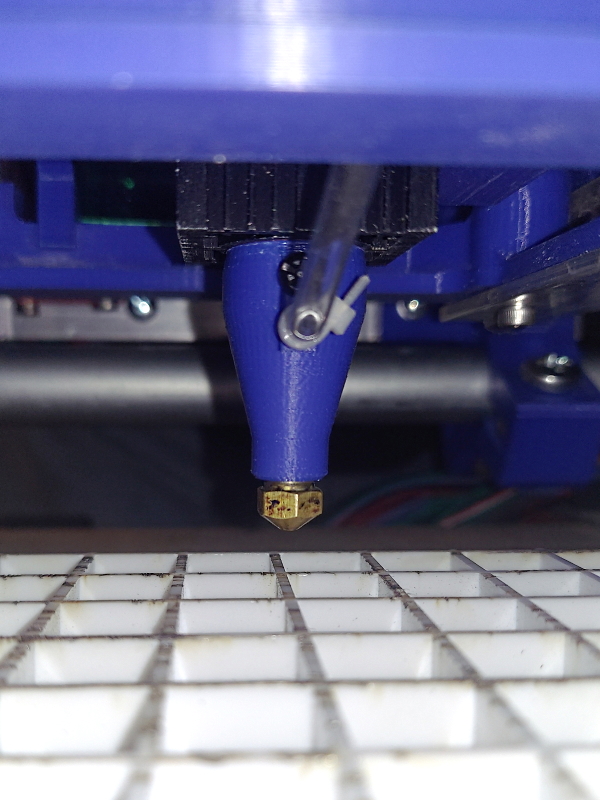

Been constantly changing the air assist nozzle and this is my latest:

Jet Power

I used an old brass 3D printer nozzle tip as the sharp edge hole helps with the air jet. In addition to this I added a 12v air solenoid and an air pressure regulator set at about 9 psi. The solenoid is triggered on with the laser using the Spindle Speed output from the new board.

New Laser Module

The original laser module I was using was very low power and while it would cut 1/16" (1.6mm) balsa, it was really slow. I also had to do multiple passes on anything thicker than this. So I started looking around and found a relatively inexpensive ($135) unit that claimed it was a true 10 watt (optical) laser and would cut 1/4" balsa in a single pass. I thought this could be just marketing but I gave it a shot as I knew I could return it.

What a difference!

I can now cut 1/16" plywood in a single pass at nearly 6 times the speed over the old laser and at 50% power! I can also report it will cut 1/4" (6.3mm) balsa easily in a single pass!!

1/16" & 1/4" - No problem!

To see the unit I purchased, follow the link below. Note that in this listing you have to select the 10w version.

Link- Cronos 80w/10w Laser

New Look

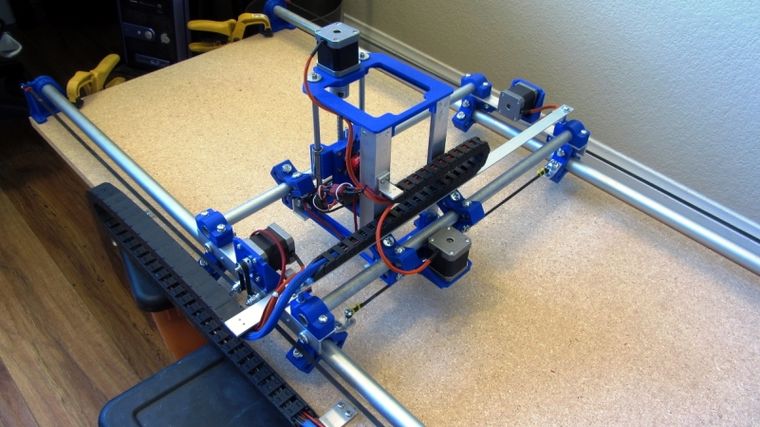

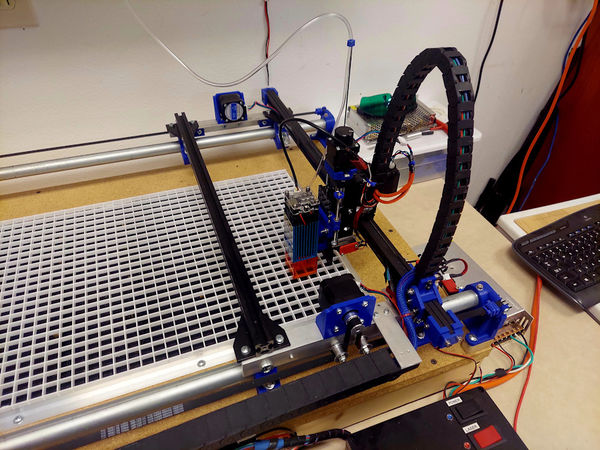

This project has undergone extensive changes over the years and below is a picture of the carriage assembly on April 1st, 2024. I will be writing an updated version of this page with all the current parts and updates. Stay tuned!

Some changes!

As shown I abandoned the original carriage in favor of a build utilizing extruded aluminum rails running on Delrin wheels which makes things that much smoother. I also used an inexpensive, manual, Z axis slide mount which I modified with a stepper motor and manual knob. All this has made for an easier to use set-up which still allows the use of the other cutting, engraving and plotting tools shown above.

Much cleaner!

Acknowledgements

Inspiration for some of the ideas in this proect came from the following excellent sources:

Pen holder for Shapeoko CNC

by EGoe March 01, 2014

https://www.thingiverse.com/thing:261162

V1 Engineering - Mostly Printed CNC

https://www.v1engineering.com/

Needle Cutter Information

A great article by jhitesman on Instuctables Workshop

https://www.instructables.com/id/CNC-Needle-Cutter/

-same author -

https://www.flitetest.com/articles/cutting-foam-sheets-with-a-needle

See Also

Info

• DXF to GCODE File Conversion

Downloads

• Complete "As-Built" parts list:   CNC_Parts_v1.1.pdf
• 3D Print Package:   CNC_3D_Print_Package_v1.1.zip
• Aluminum Parts Drawing Package   CNC_Drawings_v1.1.zip
• Aluminum Brackets Layout Label Sheet:  Layout Print PDF

Vendors

• BoltDepot.com

Other DIY Projects

• DIY - Battery Pack Spot Welder
• DIY - Dynamic Motor and Prop Balancer
• DIY - Motor and Prop Test Bench
• DIY - Vacuum Forming Box

Category:Contents
