Balsa Products BP2217-6
From ItsQv
May 2009
Drive System Information and Test Results

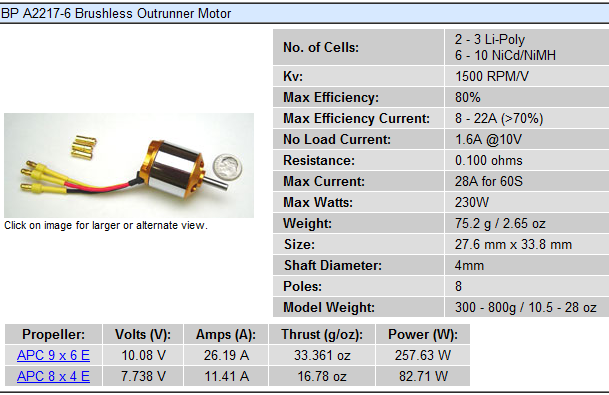

Catalogue Information
Supplier Site

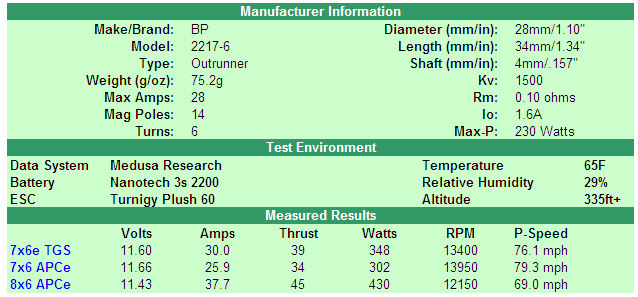

Test Results
Test results are done "On the bench" using the Medusa Research Power Analyser Pro data acquisition module with a bench mounted test stand. Run times vary depending on the power range and motor type. Data sampling either follows a ramp up to full (100%) power or a step and hold function at 0, 25, 50, 75 & 100% Throttle. System power is provided by an oversize flight battery pack and is used, without re-charge, for several tests. All summary results are taken when stable at 100% throttle.

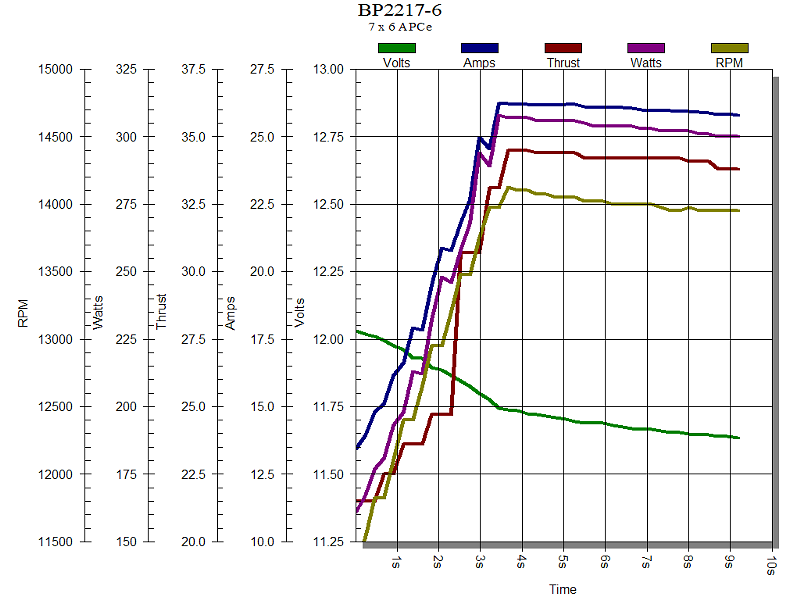

Results Snapshot
