Mini Talon Collapsible Launch Hook
From ItsQv
October 2016
|
Introduction
I wanted a collapsible launch hook for the Mini Talon because there are days without wind where I would rather use my bungee than risk a hand launch. This piece then glues on/into the fuse right up against the front wheel hump. It is additionally secured by two prongs of plastic which are buried in the hump foam.

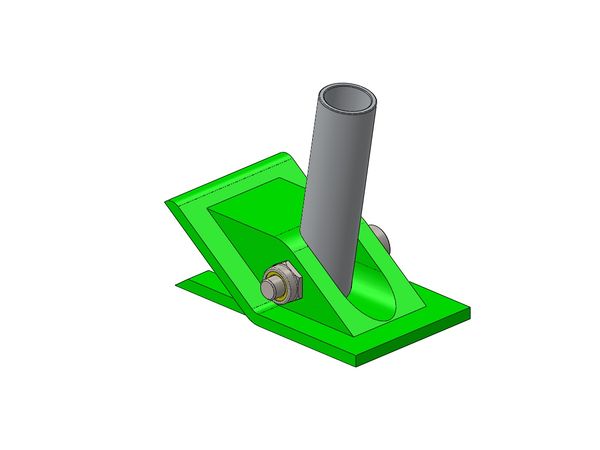

As in my other Collapsible Tow Hook, it uses an aluminum tube for the hook part with a 3mm pivot bolt. For glue I use either white tube glue or Beacons FoamTac.
Assembly
|
| Parts view |
|
| Ready to glue |
|
| Side view |
Parts List
- 1x MT_Launch_Hook_v1.STL
- 1x M3 Nyloc Hex Nut
- 1x M3 x 20mm SHCS (Trim to fit)
Print Files
See Also
- TBA
