Introduction
This page supplements the Mini Talon Parts Compilation page. It includes a list of current canopies, canopy mounts and canopy/mount compatibility notes.
Canopy List
| Image | Part Number | Part Description | Print File |
|
47001 | Canopy, Plain | 47001.STL |
|
47003 | Canopy, Mobius Mini | 47003.STL |
|
47005 | Canopy, Mobius/Runcam | 47005.STL |
|
47013 | Canopy, Roll attachment | 47013.STL |
|
47009 | Canopy, Lightweight Pan and Tilt | 47009.STL |
|
52056 | Canopy, Lightweight Pan and Tilt w/Eachine FPV | 52056.STL |
|
52069 | Canopy, Pan and Tilt, forward mount | 52069.STL |
|
47007 | Canopy, Heavy Duty Pan and Tilt | 47007.STL |
|

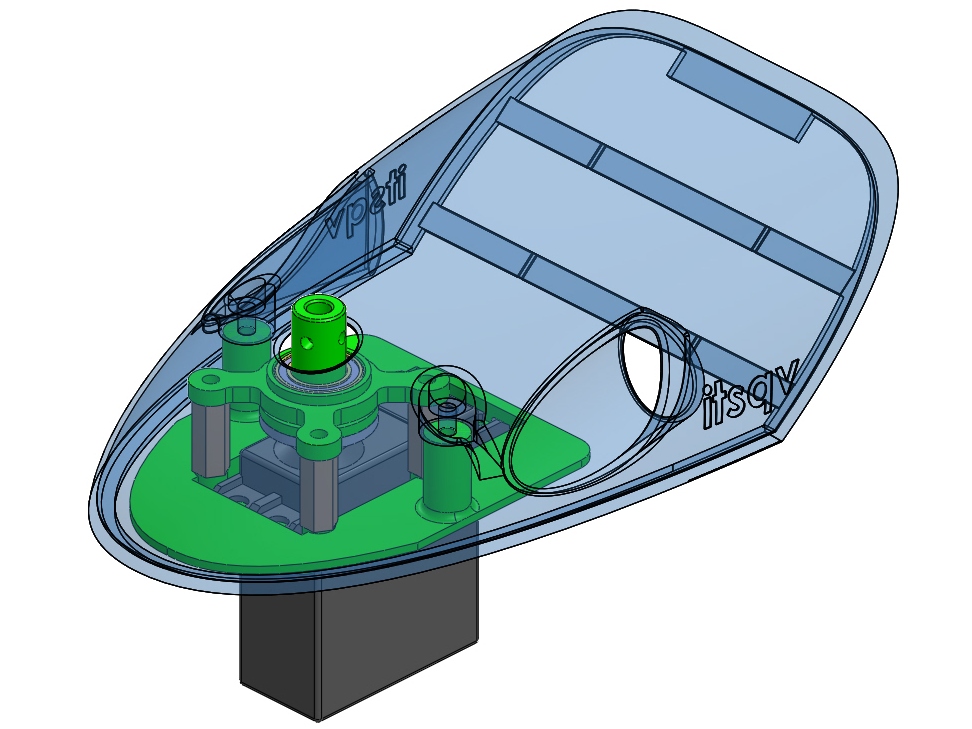

52073 | Canopy, HD Pan and Tilt, forward mount | 52073.STL |
|
52071 | Canopy, Static Mobius or Runcam2 | 52071.STL |
Front Mounts
| Image | Part Number | Part Description | Print File | Compatibility |
|
52001 | Canopy support, front | 52001.STL | Supports all canopy's, FPV camera mounts static mounts and roll gimbal mount |
|
54002 | Front deck plate, narrow | 54002.STL | Full strength deck that supports all canopy's, FPV camera mounts static mounts and roll gimbal mount |
|
52065 | MT Canopy mount, front | 52065.STL | Supports all canopy's and FPV camera mounts |
|
52072 | MT Canopy mount for Mobius/Runcam2, front | 52072.STL | Designed specifically as a static Mobius or RunCam2 mount |
Rear Mounts
| Image | Part Number | Part Description | Print File | Compatibility |
|
52002 | Canopy support, rear | 52002.STL | Supports all canopy's |
|
54001 | Rear deck plate, narrow | 54001.STL | Full strength rear deck plate, supports all canopys |
|
52055 | MT Canopy mount, rear | 52055.STL | Supports all canopy's |
HD Pan & Tilt Mount
| Image | Part Number | Part Description | Print File | Compatibility |
|
54003 | GWS Servo mount | 54003.STL | Designed for the HD Pan & Tilt setup using Canopy 47007 |
